| Product Configuration Specification | |||
|---|---|---|---|
| Electrical System | |||
| Controller | 48V | Battery | Lead-Acid & Lithium |
| Motor | 5KW(AC) Mahler motor | Charger | On board charger, 48V/25A |
| Body And Chassis Configuration | |||
| Front Windshield | Injection Molding | Roof | Plastic suction art & injection molding |
| Seat | Formed anti-skid floor leather | Floor | Injection molding of PP for automobile |
| Body | Injection molding | Rearview Mirror | Manually adjustable, foldable rearview mirrors left and right |

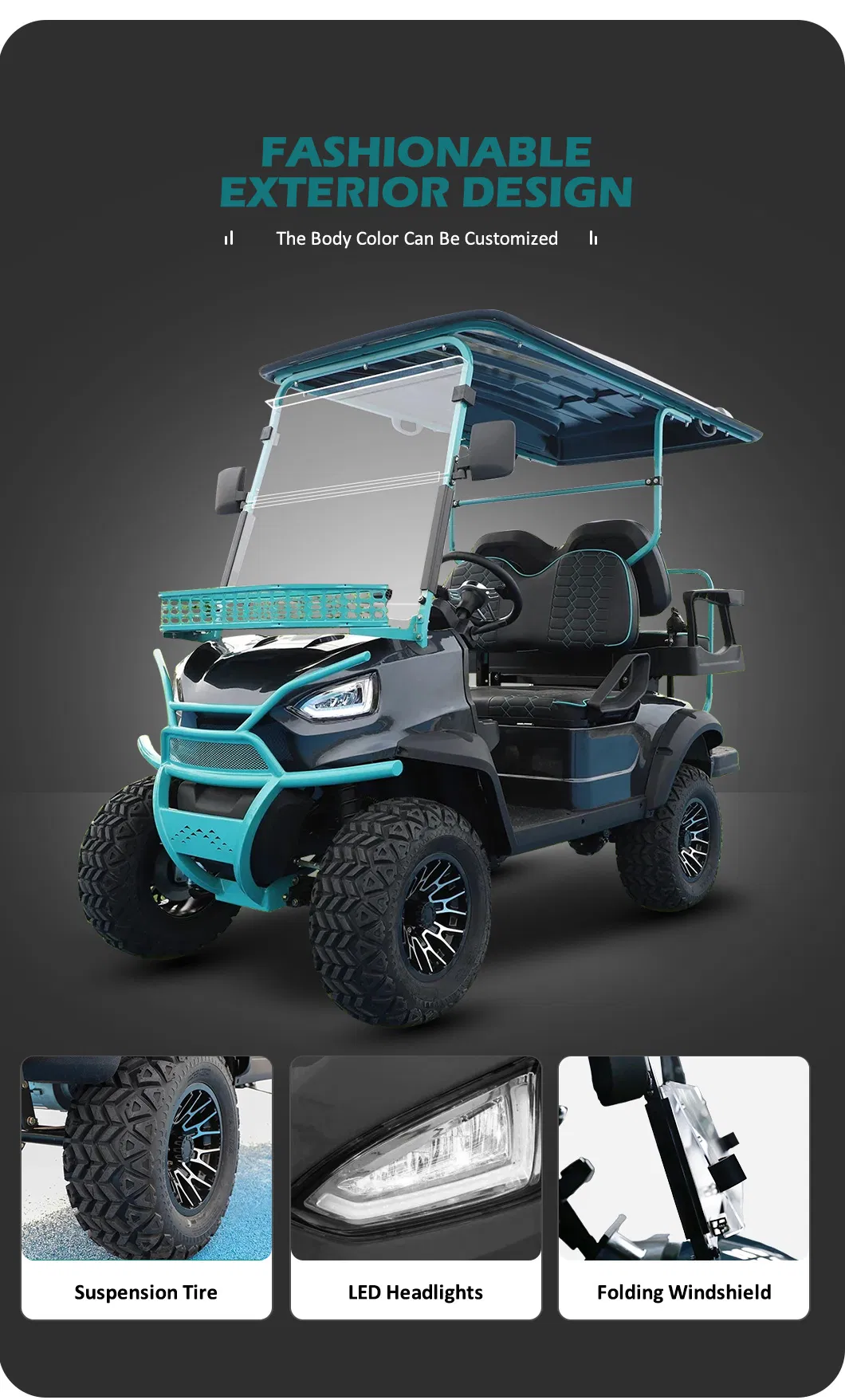

| Lighting and Signals | LED headlamp (low beam, high beam, steering light, clearance lamps) / LED tail lamp (brake light, position light, steering light) / snail horn, reversing buzzer | ||

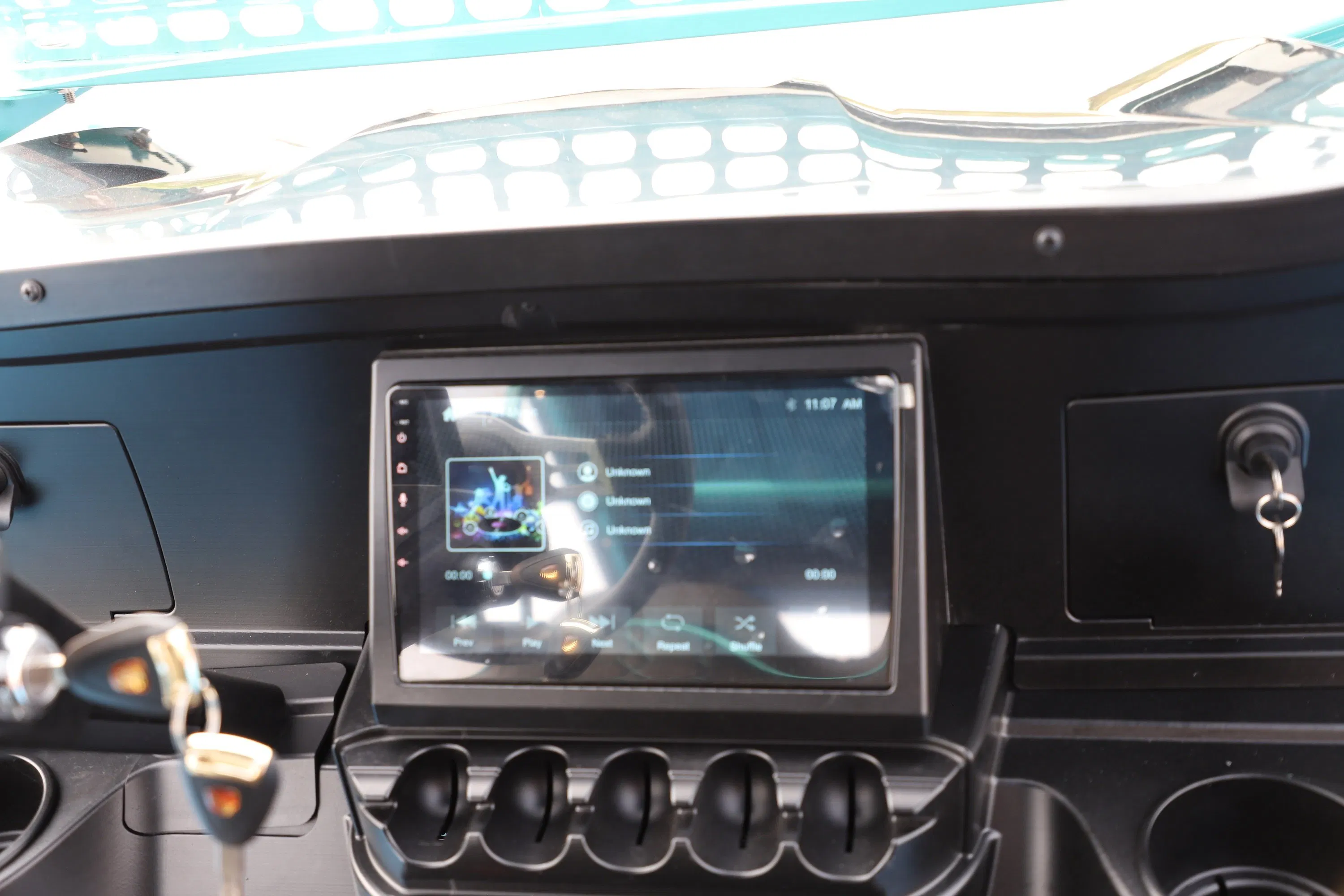

| Instrument Platform | Injection molding instrument, liquid crystal combination instrument, lock switch, single arm combination switch, gear switch, cup seat, 12V power supply | ||
| Direction System | Bidirectional rack and pinion steering system | Braking Systems | 4 wheel disc brake |

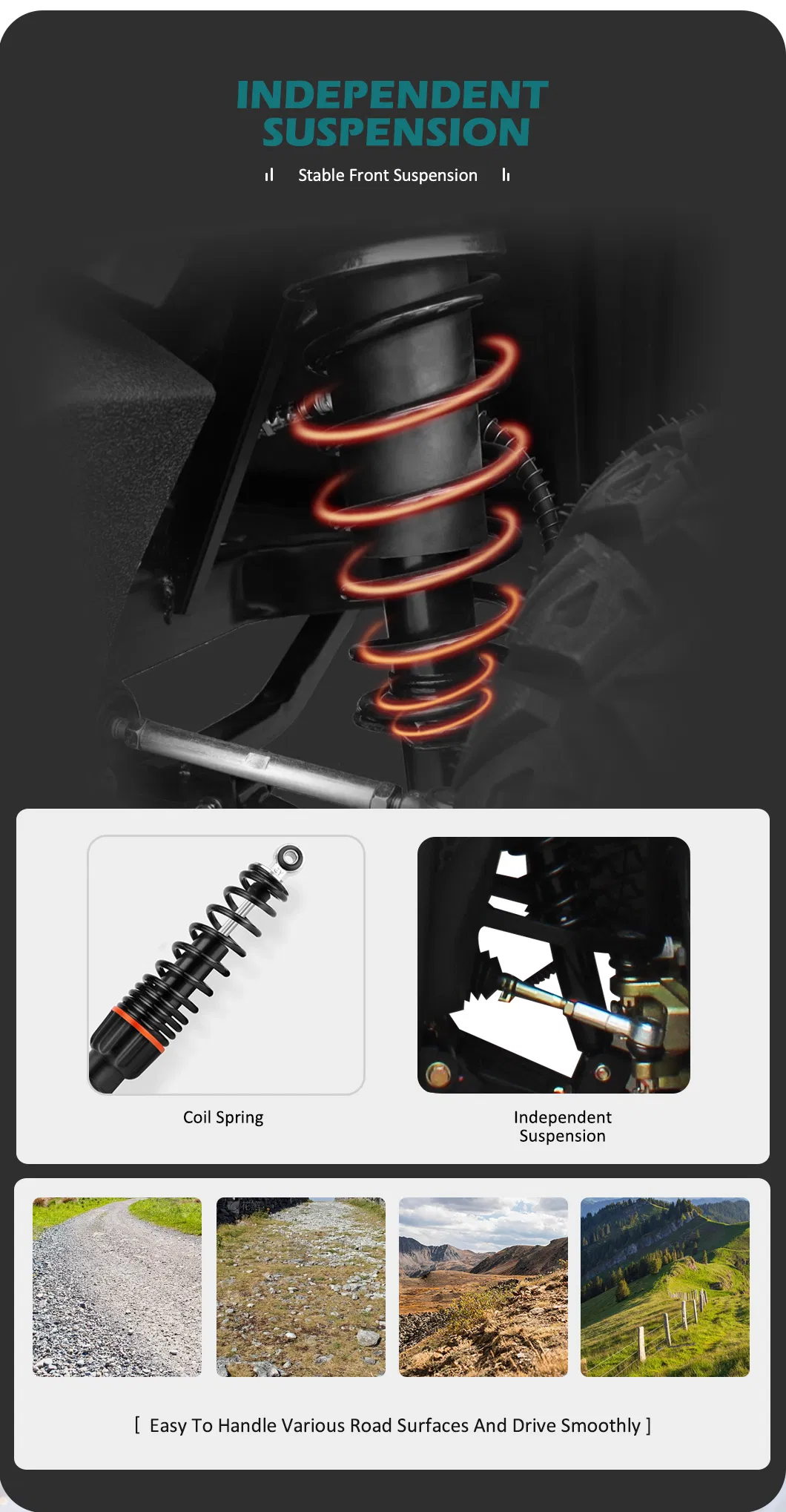

| Parking | Electromagnetic parking | Front Suspension | Double-arm independent suspension |
| Rear Suspension | Trailing arm | Tire Size | 12/14 inch |

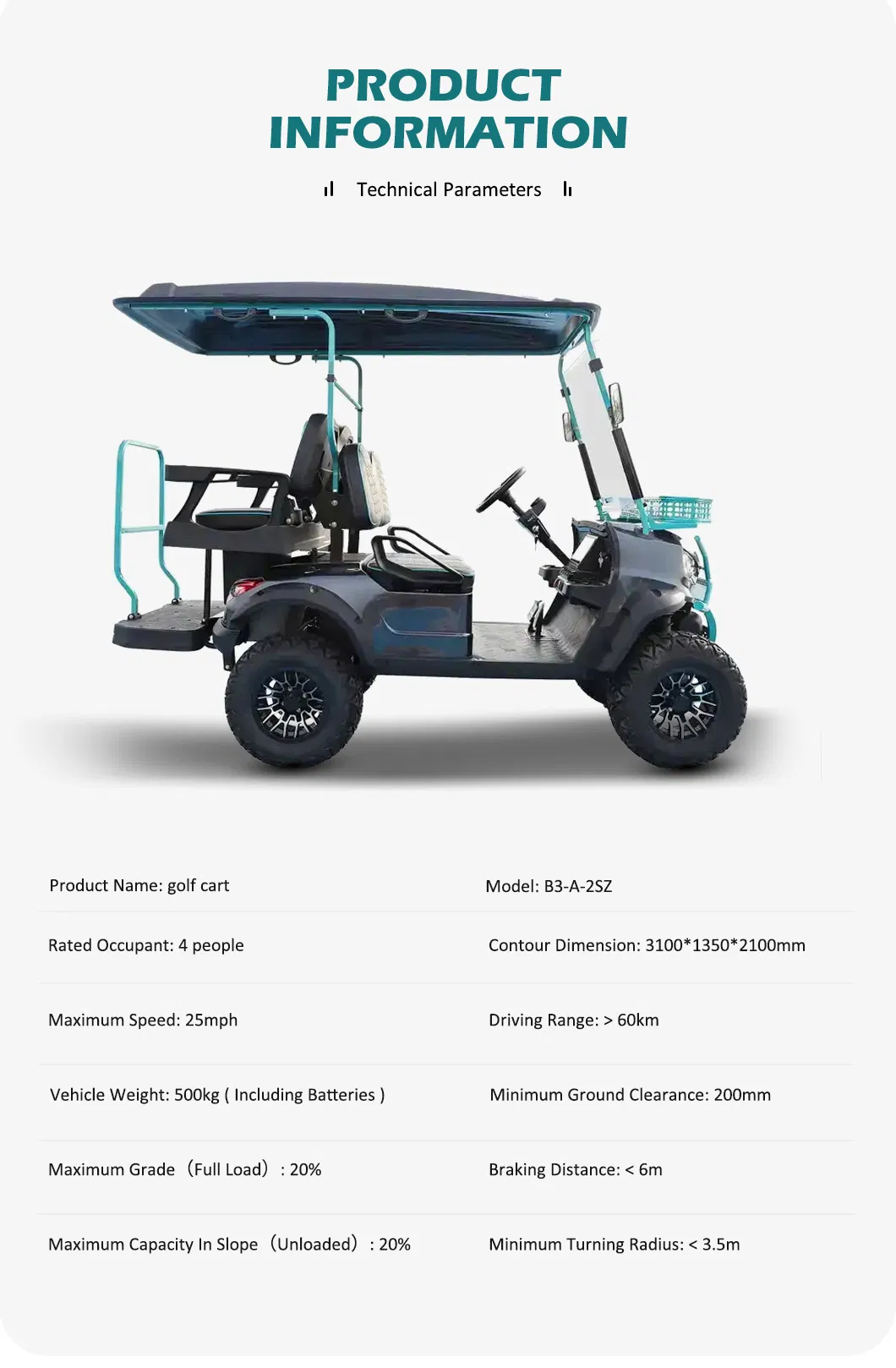

| Technical Parameters | |||
| Contour Dimension | 3100*1350*2100 mm | Vehicle Weight | 500 kg (including batteries) |
| Passenger Capacity | 4 | Max Capacity in Slope | 20% (unloaded) |
| Maximum Speed | 25 mph | Min Turning Radius | <3.5 M |
| Driving Range | >60 km | Min Ground Clearance | 200 mm |
| Maximum Grade | 20% (full load) | Braking Distance | <6 M |
