| Category / Feature | Specification Details |
|---|---|
| Performance | |
| Passenger Capacity | 6 Seats |
| Max.Speed | 25-30km/h(adjustable) |
| Driving Range | 80km |
| Climbing Ability | <20% |
| Braking Distance | <3.5m |
| Mini Turning Radius | 3.5m |
| Min.Clearance | 105mm |
| Recharge Time | 8-10hours |
| Dimension | |
| L*W*H | 2375*1206*1920mm |
| F/R Tread | 855/980mm |
| Axle Distance | 1670mm |
| Curb Weight | 480kgs |
| Standard Configurations | |
| Motor | ADC Brand 3.8KW Motor (USA brand) |
| Controller | Curtis Controller (48V 275A) (USA brand) |
| Battery | Huge capacity deep cycle lead-acid battery 8V/piece 6 pieces |
| Body & Roof | Injection molding design separable replacement |
| Windshield | Tempered glass with wiper |

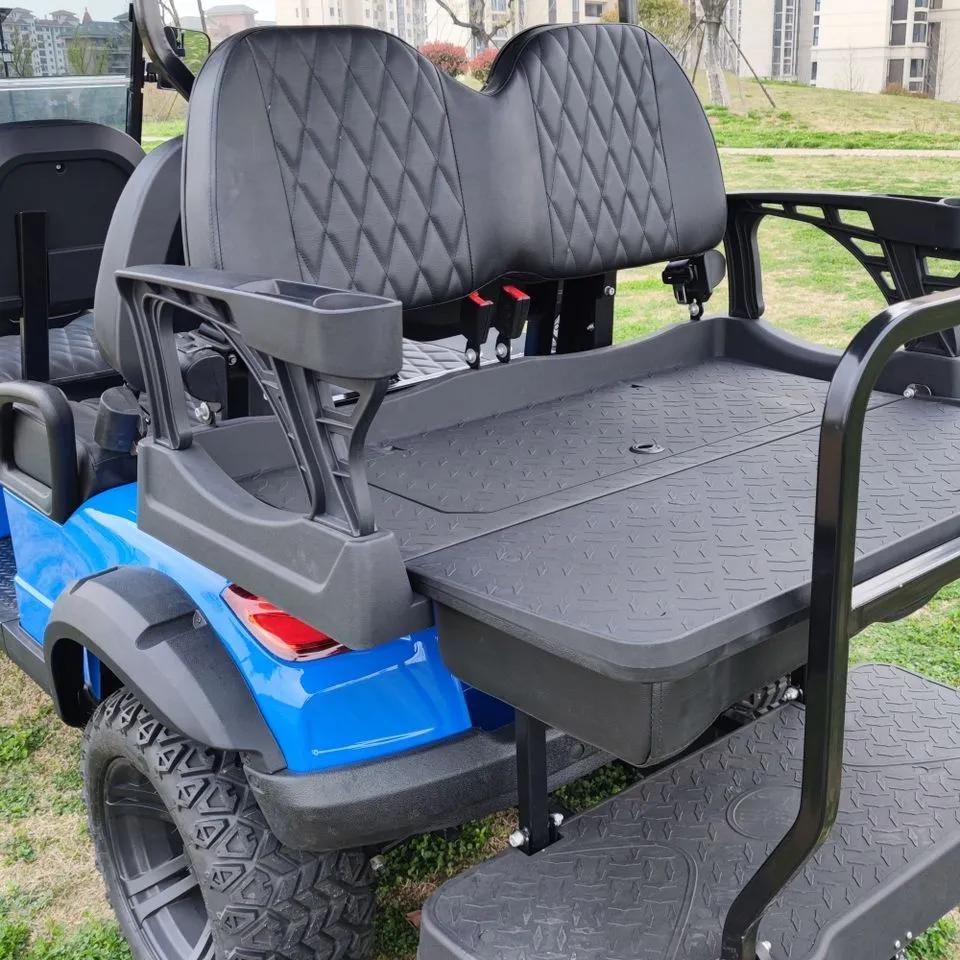

| Seats | Sponge&artificial Leather with flexible three-point belt |
| Rear View Mirror | 2 pcs |
| Bumper | Front and Rear bumper |
| Tire | Golf tyre 18×8.50-8 Wheel diameter 452mm |
| Chassis | High strength structural steel |
| Steering | Gear Steering, auto Backlash Compensation |
| Brake System | Rear Brake+ Composite Pedal Brake |
| Front Axle | Non Independent Suspension, Leaf Spring + Cylindrical Hydraulic Shock Absorb |
| Rear Axle | Integral Rear Axle, Non Independent Suspension, Spring, Sylinder Type Hydraulic Shock Absorb |

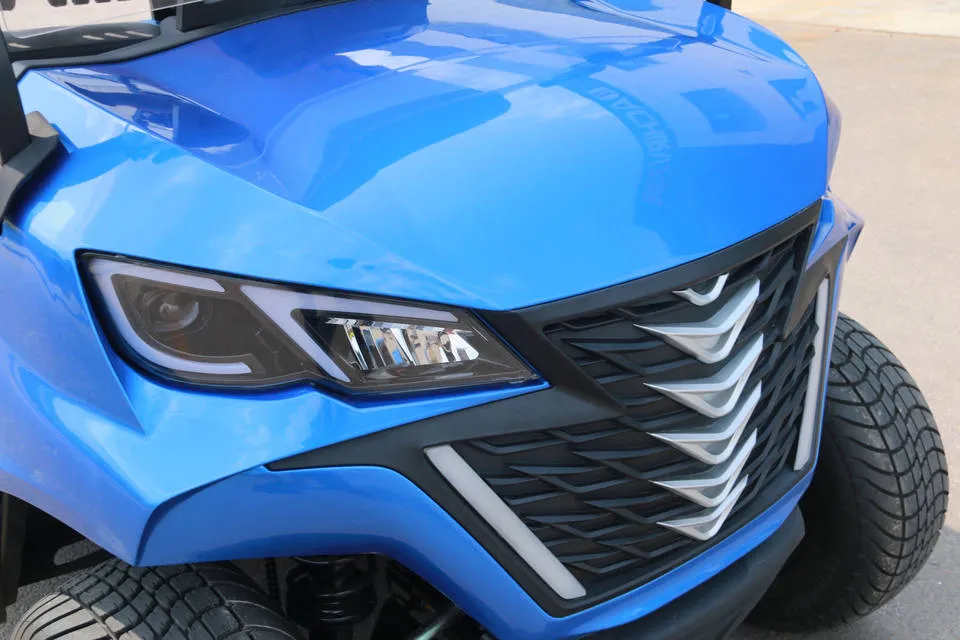

| Light System | Combination front light (turning light, high beam, dipped light) rear lighting (turning light, brake light) driving & reverse buzzer. |
| Charger | On board charger |

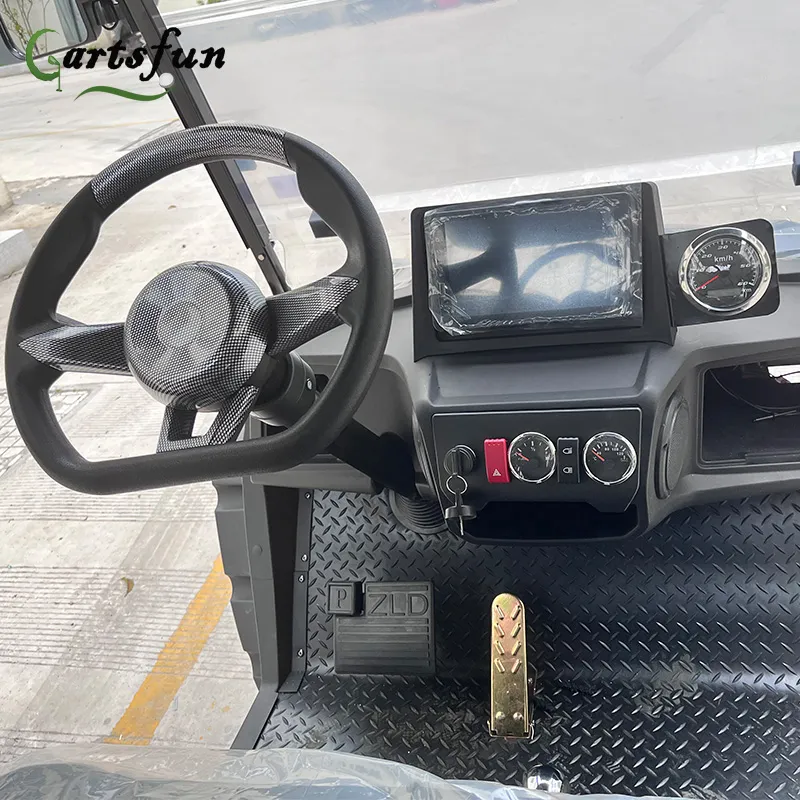

| Dashboard | Plastic molding instrument board with volt meter, ammeter,electricity indicator, speedometer,electric key switch, radio with blue tooth, storage box, cup holder,turn signal indicator,forward and Revise indicator. |
